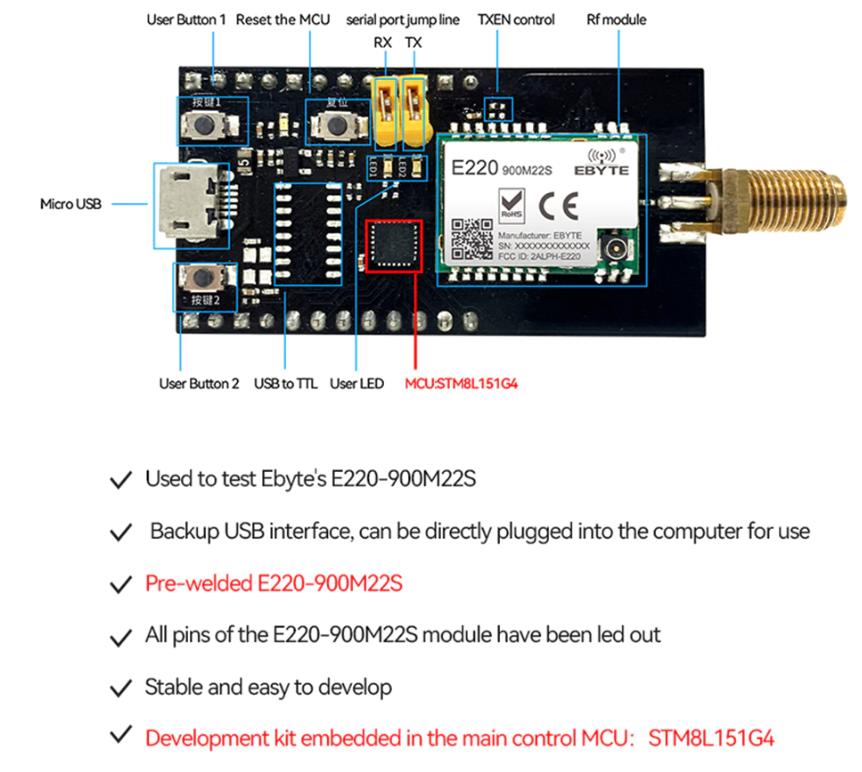

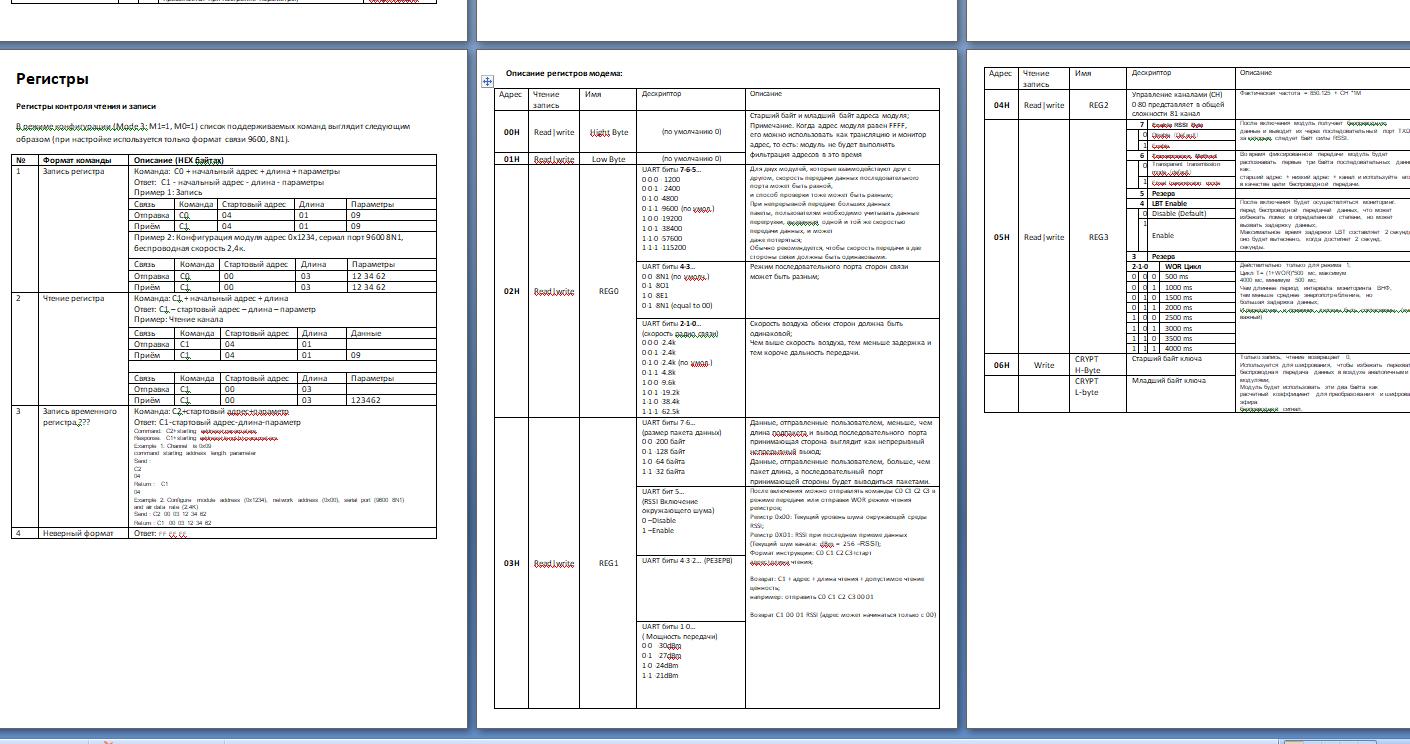

* @brief The address of the register holding the first byte defining the CRC seed
 */
#define SX126X_REG_CRCSEEDBASEADDRESS 0x06BC

/**
 * @brief The address of the register holding the first byte defining the CRC polynomial
 */
#define SX126X_REG_CRCPOLYBASEADDRESS 0x06BE

/**
 * @brief The address of the register holding the first byte defining the whitening seed
 */
#define SX126X_REG_WHITSEEDBASEADDRESS 0x06B8

/**
 * @brief The addresses of the registers holding SyncWords values
 */
#define SX126X_REG_SYNCWORDBASEADDRESS 0x06C0

/**
 * @brief The addresses of the register holding LoRa Modem SyncWord value
 *        0x1424: LoRaWAN private network,
 *        0x3444: LoRaWAN public network
 */
#define SX126X_REG_LR_SYNCWORD 0x0740

/**
 * @brief The address of the register holding the coding rate configuration extracted from a received LoRa header
 */
#define SX126X_REG_LR_HEADER_CR 0x0749
#define SX126X_REG_LR_HEADER_CR_POS ( 4U )
#define SX126X_REG_LR_HEADER_CR_MASK ( 0x07UL << SX126X_REG_LR_HEADER_CR_POS )

/**
 * @brief The address of the register holding the CRC configuration extracted from a received LoRa header
 */
#define SX126X_REG_LR_HEADER_CRC 0x076B
#define SX126X_REG_LR_HEADER_CRC_POS ( 4U )
#define SX126X_REG_LR_HEADER_CRC_MASK ( 0x01UL << SX126X_REG_LR_HEADER_CRC_POS )

/*!
 * The address of the register giving a 32-bit random number
 */
#define SX126X_REG_RNGBASEADDRESS 0x0819

/*!
 * The address of the register used to disable the LNA
 */
#define SX126X_REG_ANA_LNA 0x08E2

/*!
 * The address of the register used to disable the mixer
 */
#define SX126X_REG_ANA_MIXER 0x08E5

/*!
 * The address of the register holding RX Gain value
 *     0x94: power saving,
 *     0x96: rx boosted
 */
#define SX126X_REG_RXGAIN 0x08AC

/**
 * @brief Change the value on the device internal trimming capacitor
 */
#define SX126X_REG_XTATRIM 0x0911

/**
 * @brief Set the current max value in the over current protection
 */
#define SX126X_REG_OCP 0x08E7

/**
 * @brief WORKAROUND - Optimizing the Inverted IQ Operation, see DS_SX1261-2_V1.2 datasheet chapter 15.4
 */
#define SX126X_REG_IQ_POLARITY 0x0736

/**
 * @brief WORKAROUND - Modulation Quality with 500 kHz LoRa Bandwidth, see DS_SX1261-2_V1.2 datasheet chapter 15.1
 */
#define SX126X_REG_TX_MODULATION 0x0889

/**
 * @brief WORKAROUND - Better resistance to antenna mismatch, see DS_SX1261-2_V1.2 datasheet chapter 15.2
 */
#define SX126X_REG_TX_CLAMP_CFG 0x08D8
#define SX126X_REG_TX_CLAMP_CFG_POS ( 1U )
#define SX126X_REG_TX_CLAMP_CFG_MASK ( 0x0FUL << SX126X_REG_TX_CLAMP_CFG_POS )

/**
 * @brief RTC control
 */
#define SX126X_REG_RTC_CTRL 0x0902

/**
 * @brief Event clear
 */
#define SX126X_REG_EVT_CLR 0x0944
#define SX126X_REG_EVT_CLR_TIMEOUT_POS ( 1U )
#define SX126X_REG_EVT_CLR_TIMEOUT_MASK ( 0x01UL << SX126X_REG_EVT_CLR_TIMEOUT_POS )

/**
 * @brief RX address pointer
 */
#define SX126X_REG_RX_ADDRESS_POINTER 0x0803

/**
 * @brief RX/TX payload length
 */
#define SX126X_REG_RXTX_PAYLOAD_LEN 0x06BB

/**
 * @brief Output disable
 */
#define SX126X_REG_OUT_DIS_REG 0x0580
#define SX126X_REG_OUT_DIS_REG_DIO3_POS ( 3U )
#define SX126X_REG_OUT_DIS_REG_DIO3_MASK ( 0x01UL << SX126X_REG_OUT_DIS_REG_DIO3_POS )

/**
 * @brief Input enable
 */
#define SX126X_REG_IN_EN_REG 0x0583
#define SX126X_REG_IN_EN_REG_DIO3_POS ( 3U )
#define SX126X_REG_IN_EN_REG_DIO3_MASK ( 0x01UL << SX126X_REG_IN_EN_REG_DIO3_POS )

/**
 * @brief TX bitbang A
 */
#define SX126X_REG_BITBANG_A_REG 0x0680
#define SX126X_REG_BITBANG_A_REG_ENABLE_POS ( 4U )
#define SX126X_REG_BITBANG_A_REG_ENABLE_MASK ( 0x07UL << SX126X_REG_BITBANG_A_REG_ENABLE_POS )
#define SX126X_REG_BITBANG_A_REG_ENABLE_VAL ( 0x01UL << SX126X_REG_BITBANG_A_REG_ENABLE_POS )

/**
 * @brief TX bitbang B
 */
#define SX126X_REG_BITBANG_B_REG 0x0587
#define SX126X_REG_BITBANG_B_REG_ENABLE_POS ( 0U )
#define SX126X_REG_BITBANG_B_REG_ENABLE_MASK ( 0x0FUL << SX126X_REG_BITBANG_B_REG_ENABLE_POS )
#define SX126X_REG_BITBANG_B_REG_ENABLE_VAL ( 0x0CUL << SX126X_REG_BITBANG_B_REG_ENABLE_POS )

/**
 * @brief Number of symbols given as SX126X_REG_LR_SYNCH_TIMEOUT[7:3] * 2 ^ (2*SX126X_REG_LR_SYNCH_TIMEOUT[2:0] + 1)
 */
#define SX126X_REG_LR_SYNCH_TIMEOUT 0x0706

/**
 * @brief Base address of the register retention list
 */
#define SX126X_REG_RETENTION_LIST_BASE_ADDRESS 0x029F

/**
 * @brief GFSK node address
 *
 * @remark Reset value is 0x00
 */
#define SX126X_REG_GFSK_NODE_ADDRESS 0x06CD

/**
 * @brief GFSK broadcast address
 *
 * @remark Reset value is 0x00
 */
#define SX126X_REG_GFSK_BROADCAST_ADDRESS 0x06CE

/*


 SX126X_SET_SLEEP                  = 0x84,

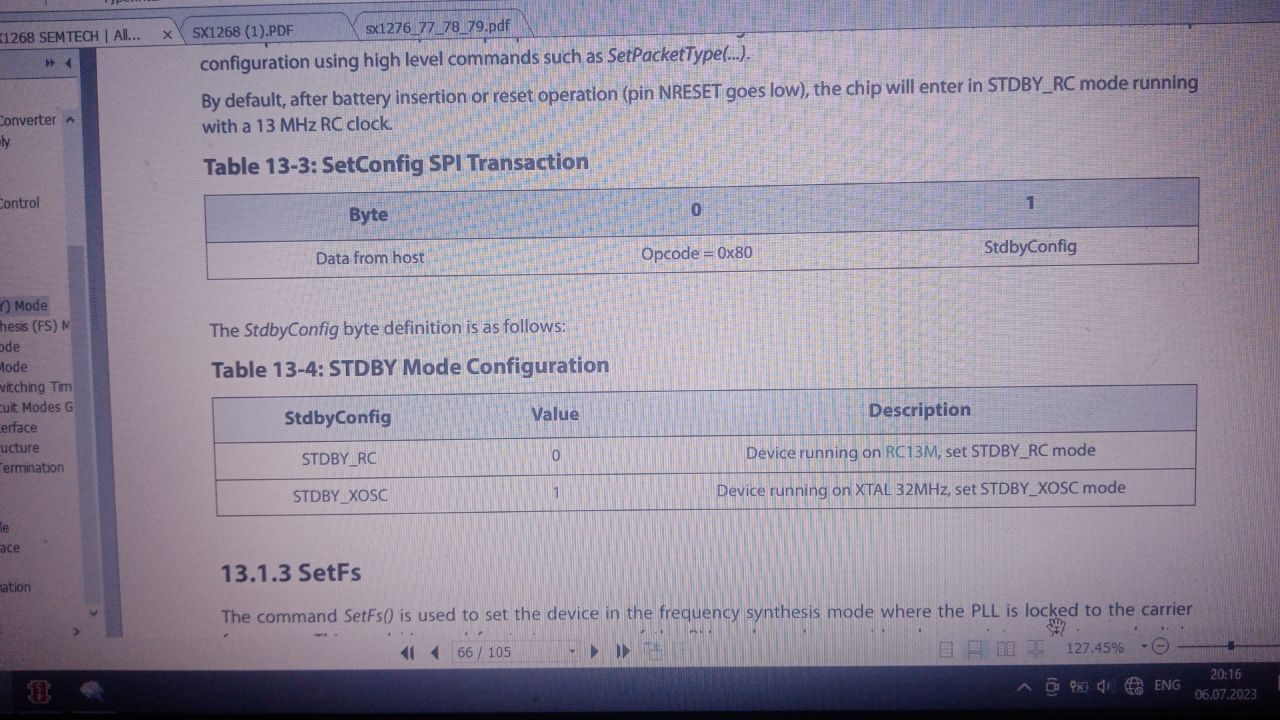

    SX126X_SET_STANDBY                = 0x80,
    SX126X_SET_FS                     = 0xC1,
    SX126X_SET_TX                     = 0x83,
    SX126X_SET_RX                     = 0x82,
    SX126X_SET_STOP_TIMER_ON_PREAMBLE = 0x9F,
    SX126X_SET_RX_DUTY_CYCLE          = 0x94,
    SX126X_SET_CAD                    = 0xC5,
    SX126X_SET_TX_CONTINUOUS_WAVE     = 0xD1,
    SX126X_SET_TX_INFINITE_PREAMBLE   = 0xD2,
    SX126X_SET_REGULATOR_MODE         = 0x96,
    SX126X_CALIBRATE                  = 0x89,
    SX126X_CALIBRATE_IMAGE            = 0x98,
    SX126X_SET_PA_CFG                 = 0x95,
    SX126X_SET_RX_TX_FALLBACK_MODE    = 0x93,
    // Registers and buffer Access

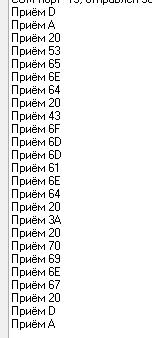

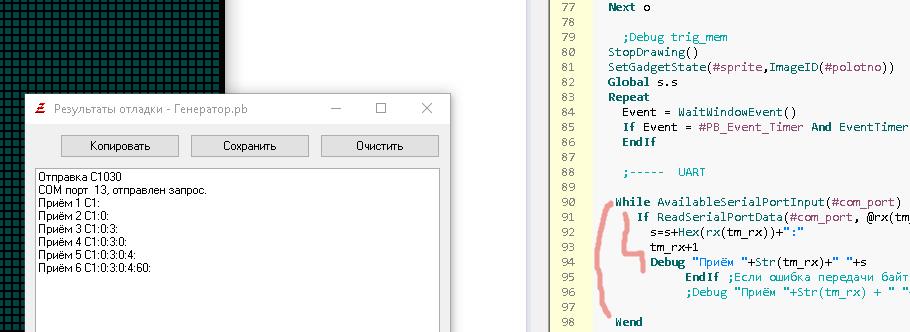

    SX126X_WRITE_REGISTER = 0x0D,
    SX126X_READ_REGISTER  = 0x1D,
    SX126X_WRITE_BUFFER   = 0x0E,
    SX126X_READ_BUFFER    = 0x1E,
    // DIO and IRQ Control Functions
    SX126X_SET_DIO_IRQ_PARAMS         = 0x08,
    SX126X_GET_IRQ_STATUS             = 0x12,
    SX126X_CLR_IRQ_STATUS             = 0x02,
    SX126X_SET_DIO2_AS_RF_SWITCH_CTRL = 0x9D,
    SX126X_SET_DIO3_AS_TCXO_CTRL      = 0x97,
    // RF Modulation and Packet-Related Functions
    SX126X_SET_RF_FREQUENCY          = 0x86,
    SX126X_SET_PKT_TYPE              = 0x8A,
    SX126X_GET_PKT_TYPE              = 0x11,
    SX126X_SET_TX_PARAMS             = 0x8E,
    SX126X_SET_MODULATION_PARAMS     = 0x8B,
    SX126X_SET_PKT_PARAMS            = 0x8C,
    SX126X_SET_CAD_PARAMS            = 0x88,
    SX126X_SET_BUFFER_BASE_ADDRESS   = 0x8F,
    SX126X_SET_LORA_SYMB_NUM_TIMEOUT = 0xA0,
    // Communication Status Information
    SX126X_GET_STATUS           = 0xC0,
    SX126X_GET_RX_BUFFER_STATUS = 0x13,
    SX126X_GET_PKT_STATUS       = 0x14,
    SX126X_GET_RSSI_INST        = 0x15,
    SX126X_GET_STATS            = 0x10,
    SX126X_RESET_STATS          = 0x00,
    // Miscellaneous
    SX126X_GET_DEVICE_ERRORS = 0x17,
    SX126X_CLR_DEVICE_ERRORS = 0x07,
